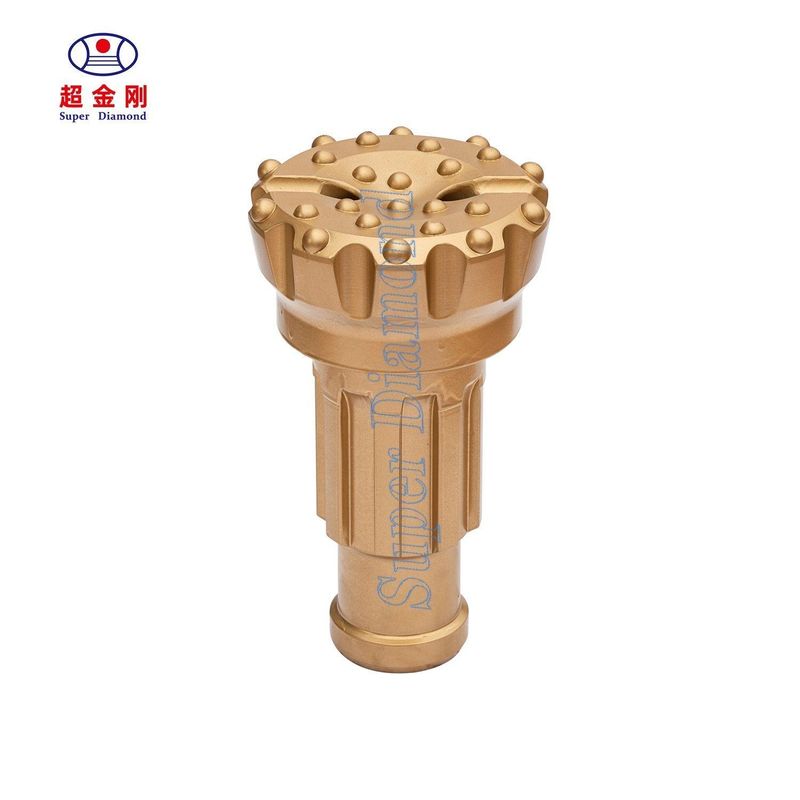

Reverse Circulation RE545 DTH Hammer Bit Power Saving For Dual Wall Drilling

Name: Reverse Circulation RE545 DTH Hammer Bit Power Saving For Dual Wall Drilling
Brand: Reverse Circulation RE545 DTH Hammer Bit Power Saving For Dual Wall Drilling
SKU: Reverse Circulation RE545 DTH Hammer Bit Power Saving For Dual Wall Drilling
Rating: 5 (123 reviews)

Product Details

Payment & Shipping Terms

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                RE545 DTH Hammer Bit, Dual Wall Drilling DTH Hammer Bit, RE545 DTH Hammers And Bits


Manufacturing Process:	Forging	Material:	Alloy Steel
Transport Package:	Ply-Wooden Cases For Exporting	Specification:	5 Inch
Trademark:	Super Diamond	Origin:	China
HS Code:	8207199000	Supply Ability:	10000

Manufacturing Process:	Forging
Material:	Alloy Steel
Transport Package:	Ply-Wooden Cases For Exporting
Specification:	5 Inch
Trademark:	Super Diamond
Origin:	China
HS Code:	8207199000
Supply Ability:	10000

Reverse Circulation RE545 DTH Hammer Bit Power Saving For Dual Wall Drilling

5inch Reverse Circulation Hammers CRE545
Earth Boring Tools-M50 Hammer Assy. New Model to Suit New Model Button Bit as La St Supplied-to Suit Coupler Design 3-1/2

Advantages:
R.C.Drilling, referred to as " Centre Sample Recovery" or " Dual Wall Drilling",employs a Dual Wall Pipe where the drilling medium, normally high pressure air,is passed between the outer and inner tubes down to the face of drilling bit where it is returned up the centre tube along with the sample cut by the drill bit.

1. No contamination
The R.C. System collects sample through the recovery holes in the face of the drill bit immediately as the cuttings or sample is formed.The drilled sample does not have to travel the length of the harmmer where contamination and loss of sample takes place.

2. Higher Production
In broken and fractured ground conditions, the R.C.will often out perform the conventional hammer in terms of penetration rates.

3.Dry Sample
Even in certain water bearing stratas it is still possible to collect a dry sample because the cutting (sample) are collected as they are formed throught the face of the drill bit.

4.Higher Sample Recovery
Because the sample is collected through the face of the drill bit there is no loss of sample when drilling through broken or fractured ground. And since the bit matched to the chuck size, there is very little by pass of sample and recovery rates of up to 98% are generally achievable.

Products specifications:

For more information, pls contact us freely.
