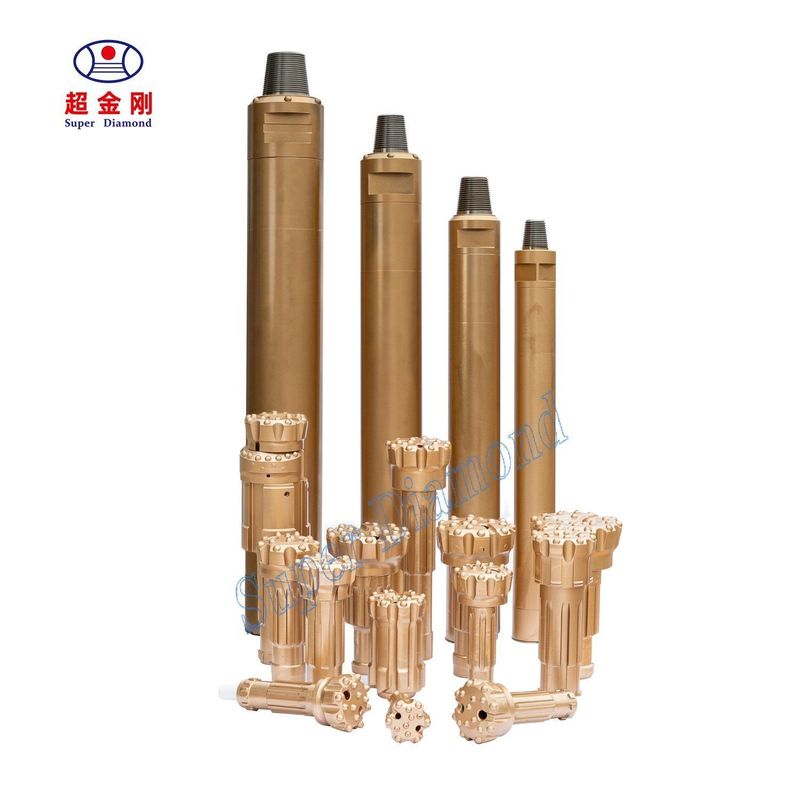

Alloy Steel Customize High Air Pressure DTH Hammer CQL50 With Spray Paint
Alloy Steel Customize High Air Pressure DTH Hammer CQL50 With Spray Paint
Alloy Steel Customize High Air Pressure DTH Hammer CQL50 With Spray Paint
Alloy Steel Customize High Air Pressure DTH Hammer CQL50 With Spray Paint
Alloy Steel Customize High Air Pressure DTH Hammer CQL50 With Spray Paint

Alloy Steel Customize High Air Pressure DTH Hammer CQL50 With Spray Paint

Product Details

Place of Origin: China

Brand Name: Super Diamond

Model Number: DHD,QL,Mission,SD

Payment & Shipping Terms

Minimum Order Quantity: 1

Get Best Price

Product Details

Product Description
Highlight:

Customize High Air Pressure DTH Hammer

,

CQL50 High Air Pressure DTH Hammer

,

CQL50 High Pressure DTH Hammer

Surface Treatment:
Spray-Paint
Manufacturing Process:
Forging
Material:
Alloy Steel
Transport Package:
Ply-Wooden Cases For Exporting
Specification:
2 Inch To 12 Inch
Trademark:
Super Diamond
Origin:
China
HS Code:
8207199000
Supply Ability:
10000
Customization:
Available
Certification:
ISO 9001:2000
Standard:
JIS, ASTM
Surface Treatment:
Spray-Paint
Manufacturing Process:
Forging
Material:
Alloy Steel
Transport Package:
Ply-Wooden Cases For Exporting
Specification:
2 Inch To 12 Inch
Trademark:
Super Diamond
Origin:
China
HS Code:
8207199000
Supply Ability:
10000
Customization:
Available
Certification:
ISO 9001:2000
Standard:
JIS, ASTM
Alloy Steel Customize High Air Pressure DTH Hammer CQL50 With Spray Paint
CQL50 (COP54 GOLD) High air pressure DTH Hammer with foot valve.


Advantages:
1. Valve air distribution. More reliable.
2.Simple design of the piston, long life.
3.More efficient energy transfer, faster drilling speed, lower air consumption and lower oil consumption.
4.Fewer internal parts, simple structure, longer life,less failure and easier to maintain because all the parts are heat treated.
5.Easy to disassemble because the top sub, the drive chuck and the external cylinder are connected by multi-sted thread.





Products specifications:



Hammers		Bit ShankConnection ThreadSuitable bitWorking pressureAir consumption
1-3" Middle-low pressure DTH hammers
BR1
BR2
BR3		RD40 box
RD50 box
API 2 3/8" Reg
¢64-¢76mm
¢70-¢90mm
¢90-¢110mm		0.7-1.75Mpa
0.7-1.75Mpa
0.7-1.75Mpa		0.7Mpa4.5m3/min
1.0Mpa4m3/min
1.4Mpa5m3/min
3" hammersDHD3.5
COP32/COP34
M30		API 2 3/8"Reg¢90-¢110mm1.0-1.5Mpa1.0Mpa4.5m3/min
1.5Mpa9m3/min
4" hammersDHD340
COP44
QL40
SD4
M40		API 2 3/8"Reg¢105-¢130mm1.0-2.5Mpa1.0Mpa6m3/min
1.8Mpa10m3/min
2.4Mpa15m3/min
5" hammersDHD350
COP54
QL50
SD5
M50		API 2 3/8"Reg/API 3 1/2"Reg¢130-¢156mm1.0-2.5Mpa1.0Mpa9m3/min
1.8Mpa15m3/min
2.4Mpa23m3/min
6" hammersDHD360
COP64
QL60
SD6
M60		API 3 1/2"Reg¢152-¢203mm1.0-2.5Mpa1.0Mpa10m3/min
1.8Mpa20m3/min
2.4Mpa28.5m3/min
8" hammersDHD380
COP84
QL80
SD8		API 4 1/2"Reg¢200-¢279mm1.0-2.5Mpa1.0Mpa15m3/min
1.8Mpa26m3/min
2.4Mpa34m3/min
10" hammersSD10
NUMA100		API 6 5/8"Reg¢254-¢330mm1.0-2.5Mpa1.0Mpa22m3/min
1.8Mpa40m3/min
2.4Mpa55m3/min
12" hammersDHD1120
SD12
NUMA120
NUMA125		API 6 5/8"Reg¢305-¢381mm1.0-2.5Mpa1.0Mpa30m3/min
1.8Mpa56m3/min
2.4Mpa78m3/min
