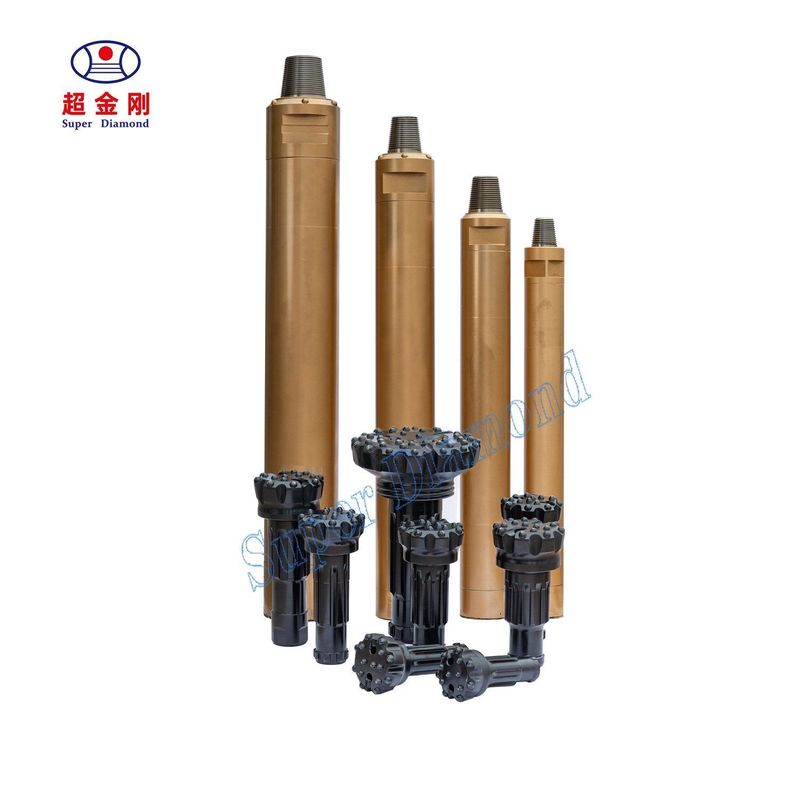

Hole Range 155-190mm 6inch DTH Hammers Without Foot Valve DHD360 Bit Shank 3inch 4inch 5inch 6inch 8inch 10inch 12inch

Name: Hole Range 155-190mm 6inch DTH Hammers Without Foot Valve DHD360 Bit Shank 3inch 4inch 5inch 6inch 8inch 10inch 12inch
Brand: Changsha Chaojingang Machinery Manufacturing Co., Ltd.
SKU: DHD,QL,Mission,SD
Price: 1,025.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Super Diamond

Model Number: DHD,QL,Mission,SD

Payment & Shipping Terms

Minimum Order Quantity: 1

Get Best Price

Product Details

Product Description

Highlight:

Manufacturing Process:	Forging	Material:	Alloy Steel
Connection Thread:	API 3 1/2" Reg	Hole Range:	Dia 155 - 190 Mm
Working Pressure:	1.0 - 2.5MPa	Compatible Bit Shank:	Cop64, DHD360, Ql60, M60, SD6, CD65
Transport Package:	Ply-Wooden Cases For Exporting	Specification:	2 Inch To 12 Inch
Trademark:	Super Diamond	Origin:	China
HS Code:	8207199000

Manufacturing Process:	Forging
Material:	Alloy Steel
Connection Thread:	API 3 1/2" Reg
Hole Range:	Dia 155 - 190 Mm
Working Pressure:	1.0 - 2.5MPa
Compatible Bit Shank:	Cop64, DHD360, Ql60, M60, SD6, CD65
Transport Package:	Ply-Wooden Cases For Exporting
Specification:	2 Inch To 12 Inch
Trademark:	Super Diamond
Origin:	China
HS Code:	8207199000

Hole Range 155-190mm 6inch DTH Hammers Without Foot Valve DHD360 Bit Shank 3inch 4inch 5inch 6inch 8inch 10inch 12inch

We are a professional producer and major manufacturer for rock drilling tools, whom are capable to design and manufacture according to customer's requirement on the Bit DiaNo., Air holes, carbide button shape and the bit face shape. High air pressure and low air pressure.

Our factory over-view:

Thanks to our long year experienced technicians and engineers in the field for more than 15 years, whom make this into reality and meet the clients' demand accurately.

All DTH hammer and bits, RC hammers and bits are compatible with , Atlas Copco, etc, and are widely used in mining, tunneling, quarrying, construction, and civil engineering project.

Our advantage and strongpoints:
1. High quality raw material, with premium hardened procedures for long life.
2. With full production chain to secure stable and prompt production leadtime.
3. Experienced Senior Technicians.
4. Long year experienced workers and engineers.
5. Quick and efficient service.
6. Care customers' concerned.

Technical Data:

DTH Hammers	Bit Shank	Connection Thread	Suitable bit	Working pressure	Air consumption

1-3" Middle-low pressure DTH hammers	BR1 BR2 BR3	RD40 box RD50 box API 2 3/8" Reg	¢64-¢76mm ¢70-¢90mm ¢90-¢110mm	0.7-1.75Mpa 0.7-1.75Mpa 0.7-1.75Mpa	0.7Mpa	4.5m3/min
					1.0Mpa	4m3/min
					1.4Mpa	5m3/min
3" hammers	DHD3.5 COP32/COP34 M30	API 2 3/8"Reg	¢90-¢110mm	1.0-1.5Mpa	1.0Mpa	4.5m3/min
					1.5Mpa	9m3/min
4" hammers	DHD340 COP44 QL40 SD4 M40	API 2 3/8"Reg	¢105-¢130mm	1.0-2.5Mpa	1.0Mpa	6m3/min
					1.8Mpa	10m3/min
					2.4Mpa	15m3/min
5" hammers	DHD350 COP54 QL50 SD5 M50	API 2 3/8"Reg/API 3 1/2"Reg	¢130-¢156mm	1.0-2.5Mpa	1.0Mpa	9m3/min
					1.8Mpa	15m3/min
					2.4Mpa	23m3/min
6" hammers	DHD360 COP64 QL60 SD6 M60	API 3 1/2"Reg	¢152-¢203mm	1.0-2.5Mpa	1.0Mpa	10m3/min
					1.8Mpa	20m3/min
					2.4Mpa	28.5m3/min
8" hammers	DHD380 COP84 QL80 SD8	API 4 1/2"Reg	¢200-¢279mm	1.0-2.5Mpa	1.0Mpa	15m3/min
					1.8Mpa	26m3/min
					2.4Mpa	34m3/min
10" hammers	SD10 NUMA100	API 6 5/8"Reg	¢254-¢330mm	1.0-2.5Mpa	1.0Mpa	22m3/min
					1.8Mpa	40m3/min
					2.4Mpa	55m3/min
12" hammers	DHD1120 SD12 NUMA120 NUMA125	API 6 5/8"Reg	¢305-¢381mm	1.0-2.5Mpa	1.0Mpa	30m3/min
					1.8Mpa	56m3/min
					2.4Mpa	78m3/min

Bit Shank can be available:
1) Dia. 64mm-70mm, shank Bulroc BR1
2) Dia. 70mm-95mm, shank Halco MACH20, Bulroc BR2
3) Dia. 90mm-102mm, shank COP32, COP34, Halco MACH303, M30, DHD3.5, Bulroc BR3, CD35
4) Dia. 105mm-152mm, shank COP44, DHD340, Halco MACH44, SD4, M40, QL40, CD45
5) Dia. 135mm-165mm, shank COP54, DHD350R, COP54, Halco MACH50, SD5, M50, QL50, CD55
6) Dia. 152mm-254mm, shank COP64, DHD360, SD6, M60, QL60, CD65
7) Dia. 203mm-330mm, shank COP84, DHD380, SD8, QL80, CD85
8) Dia. 254mm-380mm, shank SD10, Numa100
9) Dia. 305mm-508mm, shank DHD1120, SD12, N120, N125

Production Corner:

Quality Warranty:
Our products are made of high quality steel and all spares parts are inspected strictly before shipping. We have quickly responses for your complaint and suggestion.

Production Lead-time:
Generally need 15-30 days.

Transportation:
By air, By Express or By sea according to your requests.

Factory Activities:

Should you have any query or demand, pls contact us freely.

Thanks for your time.
