DTH Bits CD65

Product Details

Place of Origin: China

Brand Name: Super Diamond

Model Number: DHD,QL,Mission,SD

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 30-300USD

Packaging Details: Cartons +Ply-Wooden Cases for Exporting

Delivery Time: 5-8 days

Payment Terms: L/C,T/T

Get Best Price
Highlight:
Application:
Mining, Quarrying, Construction
Application:
Mining, Quarrying, Construction

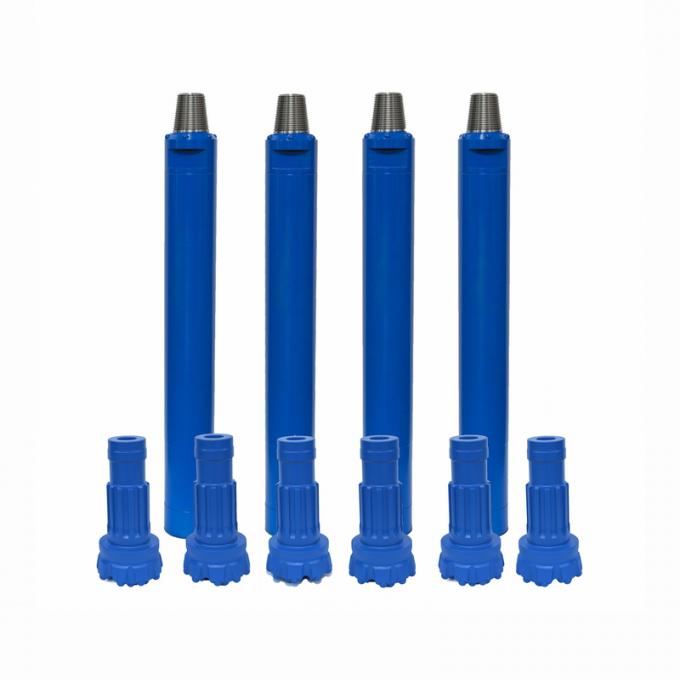

DTH Bits CD65
DTH Bits CD65


We are a leading manufacturer for various of high air pressure rock drilling tools, incl. DTH hammers and bits, RC hammers and bits, top hammer button bits, ODEX etc. Our factory locates in LiuYang city, HuNan province, China, where occupies an area of 26,600 square meters, and production facility occupies 22,000 square meters.

Premium quality, professional serivce and competitive price, help us get very good reputation from our worldwide customers, not only from the domestic, also from Brazil, Peru, South Africa, Australia, Turkey, Russia, Ukraine, Korea etc..


Product Description:

DTH Bits CD65 0

Hammers Bit Shank Connection Thread Suitable bit Working pressure Air consumption
1-3" Middle-low pressure DTH hammers
BR1
BR2
BR3
RD40 box
RD50 box
API 2 3/8" Reg

¢64-¢76mm
¢70-¢90mm
¢90-¢110mm
0.7-1.75Mpa
0.7-1.75Mpa
0.7-1.75Mpa
0.7Mpa 4.5m3/min
1.0Mpa 4m3/min
1.4Mpa 5m3/min
3" hammers DHD3.5
COP32/COP34
M30
API 2 3/8"Reg ¢90-¢110mm 1.0-1.5Mpa 1.0Mpa 4.5m3/min
1.5Mpa 9m3/min
4" hammers DHD340
COP44
QL40
SD4
M40
API 2 3/8"Reg ¢105-¢130mm 1.0-2.5Mpa 1.0Mpa 6m3/min
1.8Mpa 10m3/min
2.4Mpa 15m3/min
5" hammers DHD350
COP54
QL50
SD5
M50
API 2 3/8"Reg/API 3 1/2"Reg ¢130-¢156mm 1.0-2.5Mpa 1.0Mpa 9m3/min
1.8Mpa 15m3/min
2.4Mpa 23m3/min
6" hammers DHD360
COP64
QL60
SD6
M60
API 3 1/2"Reg ¢152-¢203mm 1.0-2.5Mpa 1.0Mpa 10m3/min
1.8Mpa 20m3/min
2.4Mpa 28.5m3/min
8" hammers DHD380
COP84
QL80
SD8
API 4 1/2"Reg ¢200-¢279mm 1.0-2.5Mpa 1.0Mpa 15m3/min
1.8Mpa 26m3/min
2.4Mpa 34m3/min
10" hammers SD10
NUMA100
API 6 5/8"Reg ¢254-¢330mm 1.0-2.5Mpa 1.0Mpa 22m3/min
1.8Mpa 40m3/min
2.4Mpa 55m3/min
12" hammers DHD1120
SD12
NUMA120
NUMA125
API 6 5/8"Reg ¢305-¢381mm 1.0-2.5Mpa 1.0Mpa 30m3/min
1.8Mpa 56m3/min
2.4Mpa 78m3/min


DTH Bits QL60

DTH Bits QL60

Product Details

Brand Name: Super Diamond/OEM

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 30-500

Packaging Details: Cartons +Ply-Wooden Cases for Exporting

Delivery Time: 5-8 DAYS

Payment Terms: L/C,T/T

Get Best Price
Application:
Mining, Quarrying, Construction
Bit Shank:
SD, DHD, COP, QL, Mission, NUMA


DTH Bits QL60
DTH Bits QL 60


We are a leading manufacturer for various of high air pressure rock drilling tools, incl. DTH hammers and bits, RC hammers and bits, top hammer button bits, ODEX etc. Our factory locates in LiuYang city, HuNan province, China, where occupies an area of 26,600 square meters, and production facility occupies 22,000 square meters.

Premium quality, professional serivce and competitive price, help us get very good reputation from our worldwide customers, not only from the domestic, also from Brazil, Peru, South Africa, Australia, Turkey, Russia, Ukraine, Korea etc..


Product Description:


DTH Bits QL60 0

Hammers Bit Shank Connection Thread Suitable bit Working pressure Air consumption
1-3" Middle-low pressure DTH hammers
BR1
BR2
BR3
RD40 box
RD50 box
API 2 3/8" Reg

¢64-¢76mm
¢70-¢90mm
¢90-¢110mm
0.7-1.75Mpa
0.7-1.75Mpa
0.7-1.75Mpa
0.7Mpa 4.5m3/min
1.0Mpa 4m3/min
1.4Mpa 5m3/min
3" hammers DHD3.5
COP32/COP34
M30
API 2 3/8"Reg ¢90-¢110mm 1.0-1.5Mpa 1.0Mpa 4.5m3/min
1.5Mpa 9m3/min
4" hammers DHD340
COP44
QL40
SD4
M40
API 2 3/8"Reg ¢105-¢130mm 1.0-2.5Mpa 1.0Mpa 6m3/min
1.8Mpa 10m3/min
2.4Mpa 15m3/min
5" hammers DHD350
COP54
QL50
SD5
M50
API 2 3/8"Reg/API 3 1/2"Reg ¢130-¢156mm 1.0-2.5Mpa 1.0Mpa 9m3/min
1.8Mpa 15m3/min
2.4Mpa 23m3/min
6" hammers DHD360
COP64
QL60
SD6
M60
API 3 1/2"Reg ¢152-¢203mm 1.0-2.5Mpa 1.0Mpa 10m3/min
1.8Mpa 20m3/min
2.4Mpa 28.5m3/min
8" hammers DHD380
COP84
QL80
SD8
API 4 1/2"Reg ¢200-¢279mm 1.0-2.5Mpa 1.0Mpa 15m3/min
1.8Mpa 26m3/min
2.4Mpa 34m3/min
10" hammers SD10
NUMA100
API 6 5/8"Reg ¢254-¢330mm 1.0-2.5Mpa 1.0Mpa 22m3/min
1.8Mpa 40m3/min
2.4Mpa 55m3/min
12" hammers DHD1120
SD12
NUMA120
NUMA125
API 6 5/8"Reg ¢305-¢381mm 1.0-2.5Mpa 1.0Mpa 30m3/min
1.8Mpa 56m3/min
2.4Mpa 78m3/min


Why choose us:

1. High quality raw material, with premium hardened procedures for long life.
2. Full production chain to secure stable and prompt production leadtime.

3. Experienced Senior Technicians.
4. Long year experienced workers and engineers.
5. Quick and efficient service.
6. Care customers' concerned.
7. Customized acceptable.


FAQ

The information you may like to know before order:

1. Methods of Payment:

  T/T (Telegraphic Transfer) or Western Union or L/C at sight

2. Handling time for an order

  Based on order quantity, normally it takes 25 days for production.

  Only 2 or 3 days if we have stock on your request size.

3. Shipping way

  Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air

  Bulk order: we suggest by air or by sea.

4. Quality Control

  We have our own experienced QC.

  There will be strict inspection and testing for every order before shipping out.

5. Can you customize the product?

  We can customize products according to your required diameter, face shape, button size and color. We can produce by your samples or technical drawings. 5 types of face shapes Selection:

    1. The Concave Face

    2. The Flat Face

    3. Double the Gauge Face

    4. The Convex Face

    5. The Drop Center

 and  5 types of Carbide Button Shape Selection:

    1.Ballistic Button

    2.Sharp Button

    3.Parabolic Button

    4.Flat Button

    5.Domed/Round button

6. After Services:

  a. Our sales team will response for your question within 24 hours (Holidays Excluded)

  b. Technical Support will be available in any time

  c. Free replacement will provide once the failure confirmed caused by our product quality
