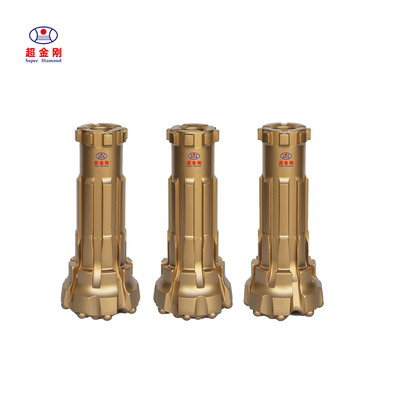

RE543反循环钻头

CRE543 反循环钻头及耐磨套 Reverse Circulation Drill Bit And Shroud

直径Diameter

合金齿数量、直径No. x Button diameter(mm)

边齿角度Button angle

水孔Flushing holes

耐磨套外径Shroud Diameter

重量Weight

编号

Part No.

mm

inch

边齿Gauge Button

中齿Front Button

mm

kg

124

4 7/8

8 x 14mm

8 x 13mm

35

2

122

10.8

RE543-124

127

5

8 x 14mm

8 x 14mm

35

2

125

11.0

RE543-127

130

5 1/8

8 x 14mm

10 x 14mm

35

2

128

11.3

RE543-130

133

5 1/4

8 x 16mm

10 x 14mm

35

2

131

11.8

RE543-133
