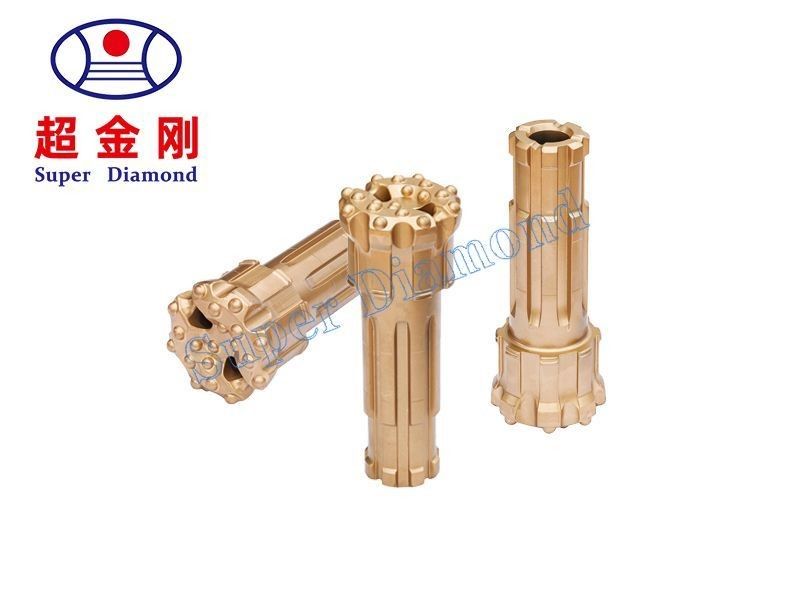

Mining Type RC Drill Bit Pr54 High Drilling Efficiency Fire Insulation

Product Details

Payment & Shipping Terms

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                Fire Insulation RC Drill Bit, High Drilling Efficiency RC Drill Bit, Fire Insulation Reverse Circulation Drill Bit


Manufacturing Process:	Forging	Material:	Alloy Steel
Mining Type:	Mining	Transport Package:	Ply-Wood Case For Safe Delivery
Trademark:	Super Diamond	Origin:	China
HS Code:	8412310090	Supply Ability:	50, 000PCS / Year

Manufacturing Process:	Forging
Material:	Alloy Steel
Mining Type:	Mining
Transport Package:	Ply-Wood Case For Safe Delivery
Trademark:	Super Diamond
Origin:	China
HS Code:	8412310090
Supply Ability:	50, 000PCS / Year

Mining Type RC Drill Bit Pr54 High Drilling Efficiency Fire Insulation

We are capable to design and manufacture according to customer's requirement on the Bit DiaNo., Air holes, carbide button shape and the bit face shape. High air pressure and low air pressure. Thanks to our long year experienced technicians and engineers in the field, whom make this into reality and meet the clients' demand accurately.

All hammer and bits are compatible with many products manufactured by , Atlas Copco, etc, all our products are widely used in mining, tunneling, quarrying, construction, and civil engineering project.

DTH drill bits
1. Customized acceptable
2. Bit diameter, face shape
3. Carbide button shape
4. qty of air hole

Bit face shape options:
1. Drop Center Bit
For high penetration rates in soft to medium hard and fissured rock formations. Low to medium air pressures. Maximum hole deviation control.
2. Concave Face
The all-round application bit face specifically for medium hard and homogenerous rock formations. Good hole deviation control and good flushing capacity.
3. Convex Face
For high penetration rates in soft to medium-hard with low to medium air pressures. It is the most resistance to steel wash, and may reduce the load and wear on the gauge buttons, but poor hole deviation control.
4. Double Gauge Face
This kind of face shape is suitable for fast penetration rates in medium to hard rock formations. Designed for high air pressures and good resistance to steel wash step gauge bit.
5. Flat Face Bit
This kind of face shape is suitable for hard to very hard and abrasive rock formations in applications with high air pressures. Good penetration rates an resistance to steel wash.

Carbide button shape selection:
1. Domed/Round Button
Domed/Round Buttons are usually used as gauge buttons of DTH Bits, suitable for every abrasive and very hard formations.
2. Parabolic/Semi-Ballistic Buttons
Parabolic Buttons are usually used as gauge buttons and front buttons of DTH Bits, suitable for medium abrasive and hard formations.
3. Ballistic Button
Ballistic Buttons are usually used as front buttons of DTH Bits, suitable for medium abrasive and mesium hard formations. They can also be used as gauge buttons if the rock is soft.
4. Sharp Button
Sharp Buttons are usually used as front buttons of DTH Bits for soft formations where fast penetration rates are possible.
5. Flat Button
Flat buttons are usually used as protection buttons to reduce wear on rubbing surfaces of DTH bits.
