CRE545 Reverse Circulation Hammers 5" Rock Drill Weather Proof Non Rusting

Product Details

Payment & Shipping Terms

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                Weather Proof Reverse Circulation Hammers, CRE545 Reverse Circulation Hammers, Non Rusting RC Hammer Drilling


Producte Name:	Reverse Circulation Hammers CRE545 5" R.C.Hammers Rock Drilling Hammers 3" 4" 4.5" 5" 5.5"	Model NO.:	CRE531 / CRE004 / CRE542 / CRE543 / CRE545 / CPR40 / CPR52 / CRE547 / CPR54
Specification:	3 Inch To 5.5 Inch	Trademark:	Super Diamond
Origin:	China	HS Code:	8412310090
Supply Ability:	10000	Customization:	Available
Certification:	ISO 9001:2000	Transport Package:	Ply-Wooden Cases For Exporting
Delivery:	20 Working Days After The Payment	Shipping:	Sea, Air, Express

Producte Name:	Reverse Circulation Hammers CRE545 5" R.C.Hammers Rock Drilling Hammers 3" 4" 4.5" 5" 5.5"
Model NO.:	CRE531 / CRE004 / CRE542 / CRE543 / CRE545 / CPR40 / CPR52 / CRE547 / CPR54
Specification:	3 Inch To 5.5 Inch
Trademark:	Super Diamond
Origin:	China
HS Code:	8412310090
Supply Ability:	10000
Customization:	Available
Certification:	ISO 9001:2000
Transport Package:	Ply-Wooden Cases For Exporting
Delivery:	20 Working Days After The Payment
Shipping:	Sea, Air, Express

CRE545 Reverse Circulation Hammers 5" Rock Drill Weather Proof Non Rusting

Reverse Circulation Hammers CRE545 5" R.C.Hammers Rock Drilling Hammers 3" 4" 4.5" 5" 5.5"

CRE531 3" R.C.Hammers / CRE004 4"R.C.Hammers

CRE542 4.5"R.C.Hammers / CRE543 4.5"R .C .Hammers

CRE545 5" R.C.Hammers / CPR40 5" R.C.Hammers

CPR52 5.5"R .C .Hammers / CRE547 5.5"R.C.Hammers / CPR54 5.5"R .C .Hammers

Product Specifications:

CRE545 R.C.HAMMER - 5"R.C.Hammers

Part Doscriplion

Part Number

weight
(Kg)

Part Number

卡簧

CIrdlp

0.04

CRE545-01

"O"形圈

"O"Ring

0.02

CRE545-02

联接管

Adaptor Screen

2.95

CRE545-03

"O"形圈

"O"Ring

0.02

CRE545-04

接头

Top Sub

6.98

CRE545-05

采集管

Sample Tube

4.61

CRE545-06

"O"形圈

"O"Ring

0.02

CRE545-07

卡簧

Circlip

0.04

CRE545-08

过滤板

Airascreen

0.02

CRE545-09

通气筛

Distibutor Nozzle

0.48

CRE545-10

"O"形圈

"O"Ring

0.02

CRE545-11

逆止阀

Plunger

0.53

CRE545-12

“Y”形圈

Y Ring

0.02

CRE545-13

弹簧

Sprtng

0.12

CRE545-14

"O"形

"O" Ring

0.02

CRE545-15

内缸

Lnner Cyinder

10.2

CRE545-16

活塞

Piston

15.1

CRE545-17

外红

Piston Case

17.2

CRE545-18

衬套

Bush Drive Sub

295

CRE545-19

"O"形圈

"O"Ring

0.02

CRE545-20

弹性挡圈

Piston Retaining Ring

0.04

CRE545-21

卡环

Bit Retaining Ring

0.23

CRE545-22

"O"形圈

"O"Ring

0.02

CRE545-23

耐磨套

Shroud

1.6

CRE545-24

卡钎套

Drive Sub

3.41

CRE545-25

钻头

Drill Bit

12.6

CRE545-26

技术参数 Technical Date

总长(不含钻头)
Length(Less bi)

总重(不含钻头)
Weigth(Lass bit)

冲击器外径
Etermal diameter

可佩钻头钎柄
Bit Shank

钻孔范围
Hole range

后接头螺纹
Connection Thread

1261mm

65.0kg

φ117.5mm

RE545

中122- φ135

4"-4.5"Remet
4"-4.5"Metzke

可用工作风压
Working Pressure

在2.4Mpa时
的冲击频率
Impact rate at 2.4Mpa

耗风量
推荐转速 Air consumption

Recommended rotation speed
1.7Mpa

2.4Mpa

3.0Mpa

1.5-3.5Mpa

35HZ

25-40r/min

16m³/min

22m³/min

28m³/min

Advantages:
R.C.Drilling, referred to as " Centre Sample Recovery" or " Dual Wall Drilling",employs a Dual Wall Pipe where the drilling medium, normally high pressure air,is passed between the outer and inner tubes down to the face of drilling bit where it is returned up the centre tube along with the sample cut by the drill bit.

1. No contamination
The R.C. System collects sample through the recovery holes in the face of the drill bit immediately as the cuttings or sample is formed.The drilled sample does not have to travel the length of the harmmer where contamination and loss of sample takes place.

2. Higher Production
In broken and fractured ground conditions, the R.C.will often out perform the conventional hammer in terms of penetration rates.

3.Dry Sample
Even in certain water bearing stratas it is still possible to collect a dry sample because the cutting (sample) are collected as they are formed throught the face of the drill bit.

4.Higher Sample Recovery
Because the sample is collected through the face of the drill bit there is no loss of sample when drilling through broken or fractured ground. And since the bit matched to the chuck size, there is very little by pass of sample and recovery rates of up to 98% are generally achievable.

Why choose us:
1. High quality raw material, with premium hardened procedures for long life.
2. Full production chain to secure stable and prompt production leadtime.
3. Experienced Senior Technicians.
4. Long year experienced workers and engineers.
5. Quick and efficient service.
6. Care customers' concerned.
7. Customized acceptable.

Reverse Circulation Hammer specifications:
1) 3" RC hammers: RE531,
2) 4'' RC hammers: RE004, RE004R,
3) 4.5" RC hammer: RE542, RE543,
4) 5'' RC hammer: RE545, PR40,
5) 5.5" RC hammer: RE547, PR52, PR54, RC45, AD670
6) other sizes could be made by clients' drawing request.

RC Hammer	Bit Shank	Hole Range (mm)	External Diameter (mm)	Length (without bit) (mm)	Weight	Connection Thread	Working Pressure
RE531	RE531	84-100	81	1069	29	3" Remet	1.0-3.0Mpa
RE004	RE004	111-127	107	1252	52	3.5"-4" Remet / 4" Metzke	1.0-3.0Mpa
RE542	RE542	113-130	109.5	1191	57	3.5"-4" Remet / 4" Metzke	1.0-3.0Mpa
RE543	RE543	120-135	116	1191	62	3.5"-4" Remet / 4" Metzke	1.0-3.0Mpa
RE545	RE545	122-135	117.5	1261	65	4"-4.5"Remet / 4"-4.5"Metzke	1.5-3.5Mpa
RE547	RE547	130-146	124.5	1270	71	4.5"Remet / 4.5"Metzke	1.5-3.5Mpa
PR40	PR40	124-142	120.5	1362	80.5	3.5"-4.5"Remet / 3.5"-4.5"Metzke	1.5-3.5Mpa
PR52	PR52	126-142	121	1227	68.5	4"-4.5"Remet / 4"-4.5"Metzke	1.5-3.5Mpa
PR52R	PR52/PR52R	130-146	124	1225	65	4"-4.5"Remet / 4"-4.5"Metzke	1.5-3.5Mpa
PR54	PR54	135-150	130	1294	84.5	4.5"Remet / 4.5"Metzke	1.5-3.5Mpa
RC45	RC45	130-146	124.5	1298	71	4.5"Remet / 4.5"Metzke	1.5-3.5Mpa
AD670	AD670	135-150	132	1339	90	4.5" Remet / 4.5" Metzke	1.5-3.5Mpa

RC bits sizes available:

1) 3" RC Bits: diameter (86mm-102mm), shank (RE531),
2) 4'' RC Bits: diameter (114mm-127mm), shank (RE004, RE004R),
3) 4.5" RC Bits: diameter (121mm - 133mm), shank (RE542, RE543),
4) 5'' RC Bits: Diameter (113mm-146mm), shank (RE545, PR40),

5) 5.5'' RC Bits: Diameter (133-146mm), shank (RE547, PR52, PR54, RC45, AD670)
Other sizes can be upon customer's requirements. Customized acceptable.

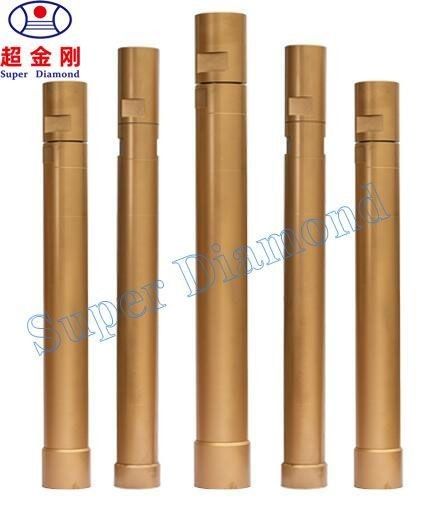

Product Photos:

About Us:

We are a leading manufacturer of various rock drilling tools, including DTH hammers and bits, RC hammers and bits, top hammer button bits, ODEX System, and so on. Our factory is located in Liuyang City, Hunan Province, China, where it occupies an area of 26,600 square meters, with the production facility taking up 22,000 square meters.

With premium quality, professional service, and competitive prices, we have earned an excellent reputation from our worldwide customers, not only domestically but also in countries such as Brazil, Peru, South Africa, Australia, Turkey, Russia, Ukraine, and Korea.

Certificate:

Quality Warranty:

Our products are made of high quality steel and all spares parts are inspected strictly before shipping. We have quickly responses for your complaint and suggestion.

Package and Shipping:

FAQ:

1.Are you a manufacturer or a trade company?

We are the first-class drilling tools manufacturer in China.

2.How many workers in your factory?and what is your company scale?

We have more than 100 employees.Our company has many senior mechanical design engineers with more than 20 years of design experience in the drilling tool, the production process and technology are at the first-class level in China. With a land area of 26600 square meter and workshop sapce of 22000 square meter .We are equiped with over 100 sets of different advanced equipments and facilities required for manufacturing rock drilling tools.Over 50-70% for export which covers most of the global markets including Korea,Malaysian,Australia,Russia,Middle Asian,East,Europe,South America,and Africa etc..

3.Where are your company?

We are located in Changsha city,Hunan province, half hours by car from the nearest Huanghua international airport.

4.Which port do you shipping from?

We usually ship container from Shanghai port.Guangzhou and ShenZhen port is available too.

5.Can you accept OEM & ODM ?

Yes, both of them are acceptable.

6.What is your minimum order quantity?

Our MOQ are 1pc or 1 complete set, the price may rely on the order quantity.

7.What is your payment term?

We can accept T/T, L/C at sight, West union and in cash.

8.How about the delivery time?

Generally it takes about 20 days .

9.Could we make a schedule of an appoinment with your company?

Definitely.You are the most welcome.Please inform us your arrival time in any place of China and initial routine in advance.We can reserve the hotel,offer pickup service from Changsha Huanghua airport or the CHR Express station unpon your arrival and after the appoinment.Be our guest then!
